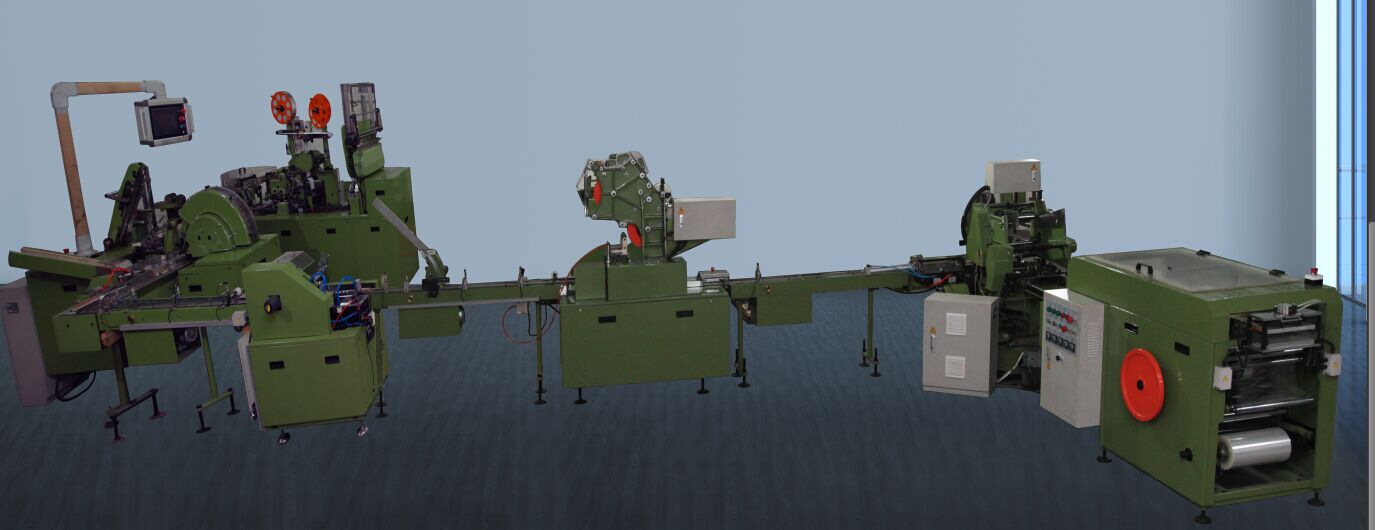

HLP2 Cigarette Packing Machine Line

Hlp2 Cigarettte Packing Line:This packing line is mainly composed of four single machines:HLP2N Cardboard Packet Packing Machine,YB59 Packet Film Packing Machine,YB69 Carton Packing Machine and YB99 Carton Film Packing Machine.It is used for the whole process of packet packing, packet film wrapping,box packing and box film over wrapping.

MAIN PARAMETER

1.Rated Capacity:18 cartons/min

2.Packing Specification(king size)

Collation:7-6-7

Specification of cigarettes(length*perimeter):84mm*24.5mm

Specification of packet(L*W*H):87.5mm*56mm*23.5mm

Specificatiion of carton(L*W*H):283mm*89mm*48mm

Note:Packing specifications can be adjusted according to the clients' needs.

3.Rated Power:9.44kw

4.Dimension(L*W*H):7000mm*6500mm*1820mm

5.Net Weight:5880kg

Parameters:

48m3 / h , 0.60mpa Cigarette Packing Machine for Wapper

Item	Wrapper
1.Max Speed	180-180 Packets/Min
2.Working Speed	180-180 Packets/Min
3.Text Displays	HLP2
4.Technical Documents	English only
5.PLC	Siemens
6.Ambient Temp	25±5℃
7.Ambient RH	55%～65% RH
8.Color	Green
9.Year two class preparation	According to user needs to order
10.Compressed Air Needs	pressure >0.60Mpa flow >48m3/h
11.Diameter Supply Line	Inside diameter 8-10mm hose
12.Power	380 V, 3 Phase 60 HZ
13.Connected Load	3.6KW
14.Safety Loop Voltage	24 Volt
15.Need for Neutral Wires	Yes
16.BOPP	1. nature: Polypropylene BOPP for heat-sealed, can be stretched in vertical two ways. The specification should conform to the Nation Standard GB/12026-89. 2. dosage 19-23g/ m2 3. width 118mm 4. diameter of bobbin core ∮75
17.Tear strip	1. Nature of Anti-stretch is strong, force of break no less than 10N, plain and straight, without spirals. 2. width 2.5mm 3.diameter of core ∮28mm 4. dosage 40-70g/ m2
18.Size	87.5×56×23.7mm
