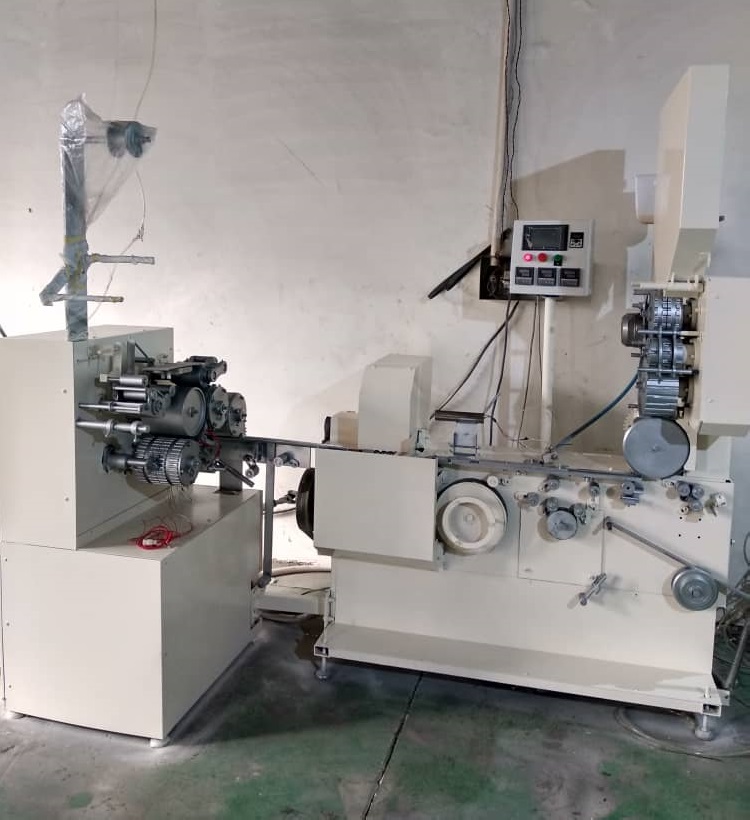

I．     Technical Specifications of Combination

1. Tube Diameter

Φ8.0mm

2. Total Tube Length

84±0.5mm

3. Filter Length

15±0.5mm

4. Filter Plug Length

60±0.5mm (4 cuts) or 90±0.5mm (6 cuts)  which one need to confirm before order

5. Product speed

min 800-1000 Tube/min

7. Total Weight of Combination

900 Kg

8. Power Requirement

⑴Rate Power

5 KVA

⑵Voltage

380±10%V(Three Phases)

⑶Frequency

50HZ

V．  MJ-4 Demands for the environment and raw and auxiliary material ：

1.：Requirements for Environmental Condition

⑴Ambient Temperature

24-28°

⑵Relative Humidity

62%∽68%

2. Compressed Air

5.5 bar

⑴Start/Stop

1.2Cubic Meter/min

⑵Rotation

0.6 Cubic Meter/min

3.

Cigarette Paper: The paper bobbin made of hemp, the main technical specification complies with the following

⑴Width

28±0.5mm

⑵Anti-tension strength

>0.85KN/M

⑶Extension rate

>1.6%

⑷Moisture

6%±1.5%

⑸No. of joints

<1/1000M

⑹Outside Diameter of the Paper Bobbin

<530mm

⑺Core Diameter of the Paper Bobbin

120mm

4. Cork paper bobbin

⑴Width

Max 35mm

⑵Thickness

0.04 mm∽0.05 mm

⑶Outer Diameter of the Cork Paper Bobbin

360mm∽380mm

⑷Core Diameter of the Cork Paper Bobbin

65mm

5..

Filter Plug: Made of Cellulose acetate, the main technical specification should comply with the followings.

⑴Filter Plug Length

60±0.5mm or 90±0.5mm

⑵Filter Plug Diameter

Φ7.8-7.9 mm

⑶Plug Moisture

<7%

6. Viscosity of PVA

⑴  for maker

800mpa.s∽1200mpa.s

⑵  for assembler

2100mpas∽3100mpa.s
